罗克韦尔Allen-Bradley(AB ) ：电机控制-低压启动器
开放式和封闭式启动器，NEMA
我们的开放式和封闭式 NEMA 启动器包括全压、可逆和双速运行模式，电流可高达 2250 A。
特性:
.提供面板或 DIN 导轨安装型
.提供 3 相和单相
505/509:
.可逆 (Bulletin 505) 和非可逆 (Bulletin 509)
.NEMA 规格 00 至 9
..不能与 NEMA 接触器和带有可选通信模块的电子过载继电器组合
可以垂直排列，Bulletin 505V 规格 0 至 5
.提供金属外壳：类型 1、3R/12、4/4X 不锈钢，7 和 9 危险场所
509-EOD
509-DOD
509-AOD-A2F
509-BOD-A2G
509-AOD
509-COD
509-BOD-A2E
509-BOD
509-EOB
509-EOD-A2M
509-COJ
509-AOB
509-COA
509-BOA
509-COB
509-DOB
509-BOB
509-FOD
595-A
Number of indicator lights 0
Voltage type for actuating AC
With transformer No
Suitable for emergency stop Yes
External reset possible Yes
With short-circuit release Yes
With fuse No
Rated control supply voltage at AC 50 Hz 110
Rated control supply voltage at AC 60 Hz 120
Release class CLASS 30
Type of motor starter Direct online starter (DOL)
Service limit current rating 312 A
Continuous current 270
Circuit closing inrush current peak including offset, max 3163
Heat dissipation 19.8 W (series L)
Coil operating limits 85...110% (series L)
Operating volt amperes burden Sealed: 96VA, 60 Hz coils (series L)
Hp rating, max 75Hp @ 230V load voltage, 3-phase (plugging and jogging duty)
Transformer primary switching kVA rating 94 kVA @ 460V load voltage, 3-phase (inrush current ≤20 times continuous current)
Capacitor switching kVAR 80 kVAR @ 230V, 3-phase (If maximum available current (at capacitor terminals) is greater than 3000 A,
contact your local Rockwell Automation sales office, Allen?Bradley distributor, or NEMA ICS-2 standard)
Temperature compensated overload protection Yes
Coordination class according to IEC 60947-4-3 Class 2
Type of electrical connection of main circuit Screw connection
Type of electrical connection for auxiliary- and control current circuit Screw connection
陕西赛硕机电设备有限公司公司主营：电子设备，仪器仪表，五金交电，自动控制设备，高低压电器，传动液压电磁阀，计算机设备，自动化系统DCS系统、PLC控制系统、进口伺服控制系统;欢迎与我们联系！

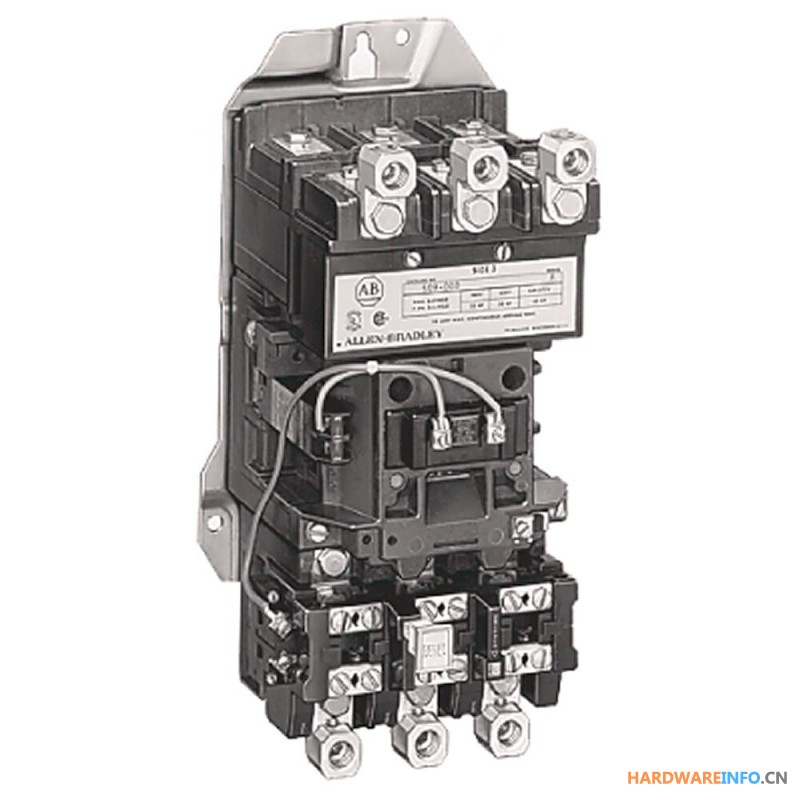

电脑版：罗克韦尔AB启动器509-FOD
